ASUS Components Graphics Cards DUAL-RTX3060TI-8G-MINI-V2


In stock


In stock

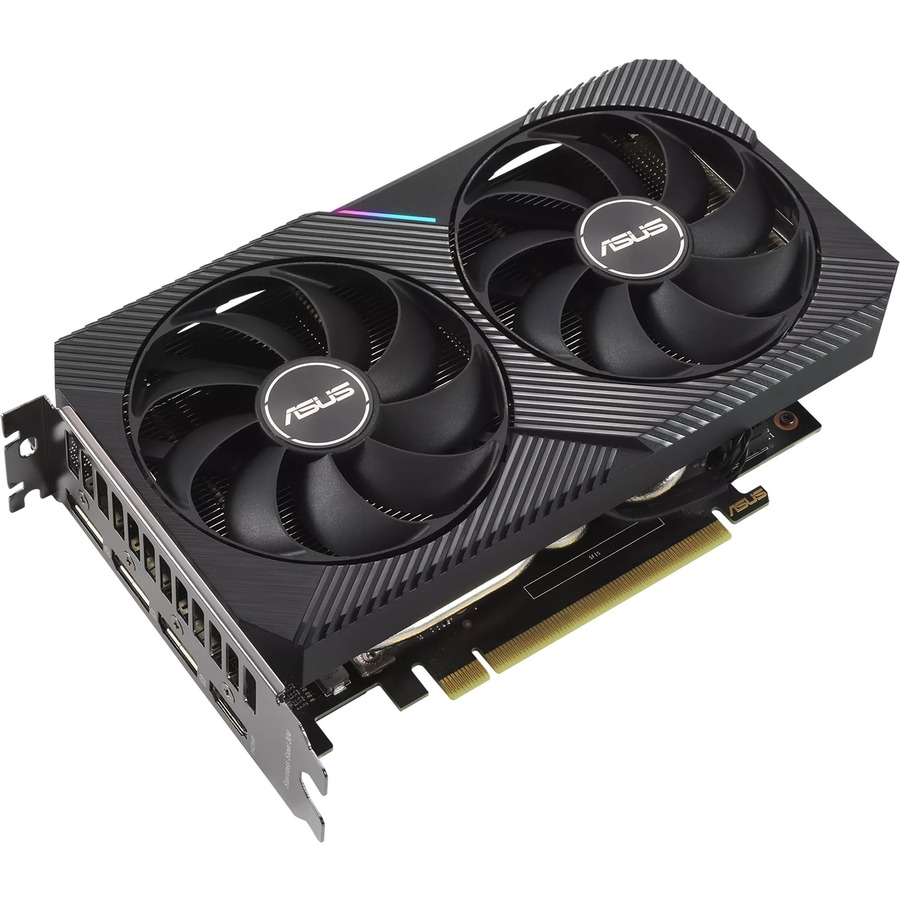

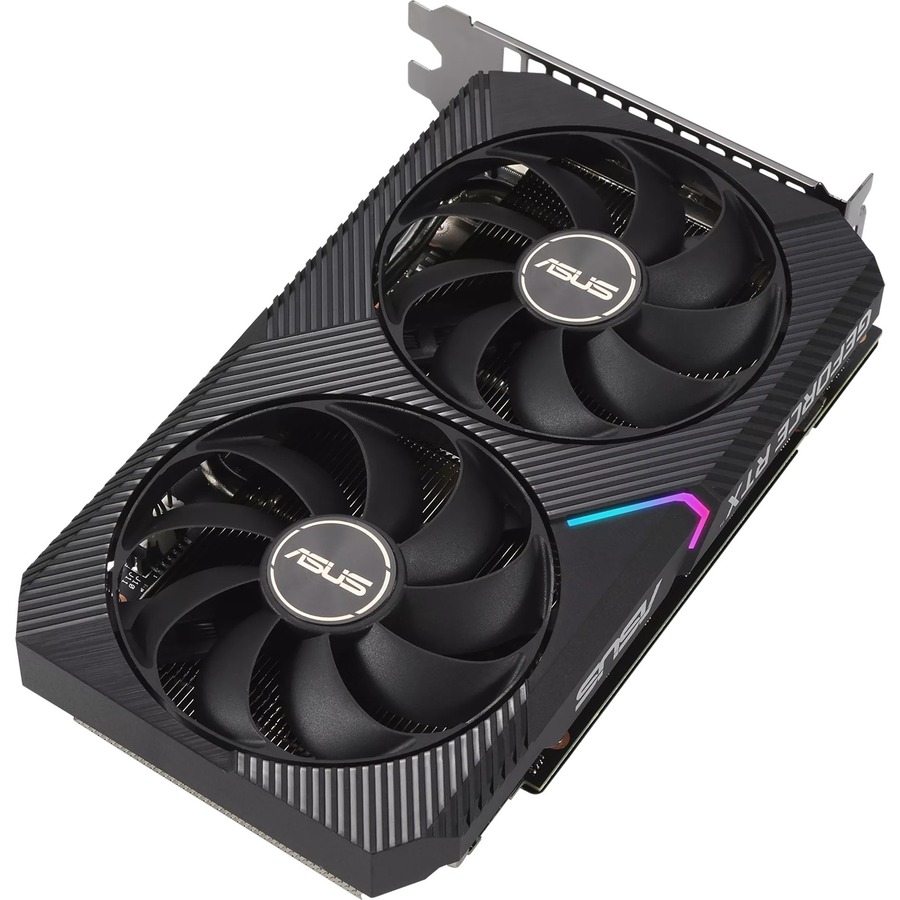

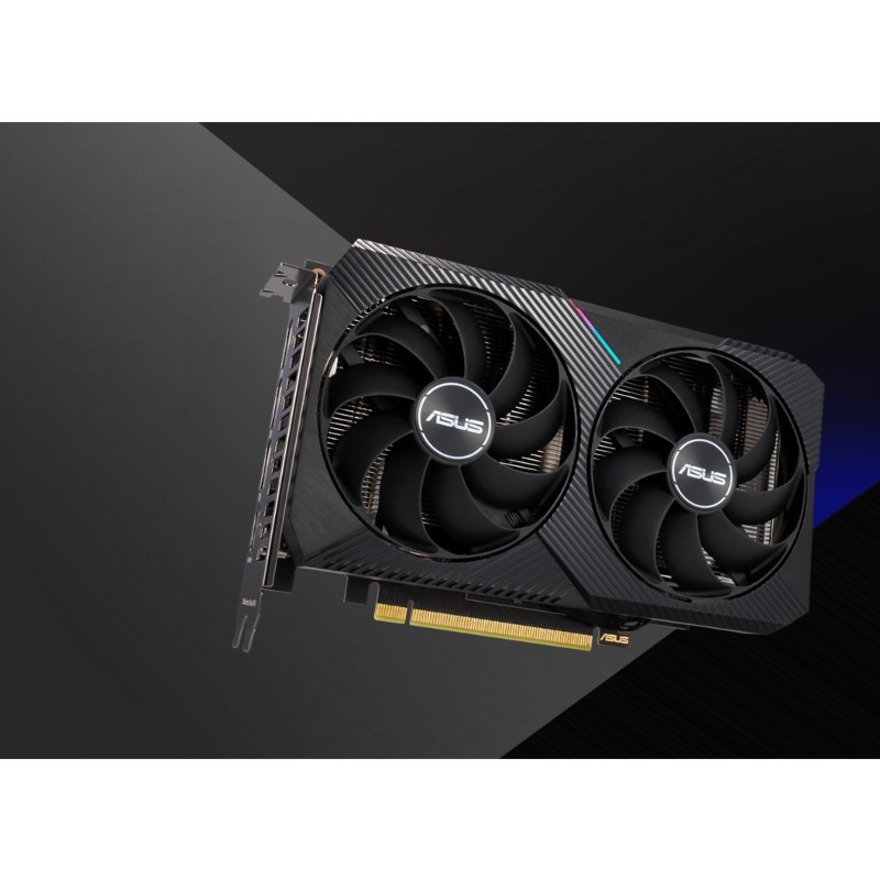

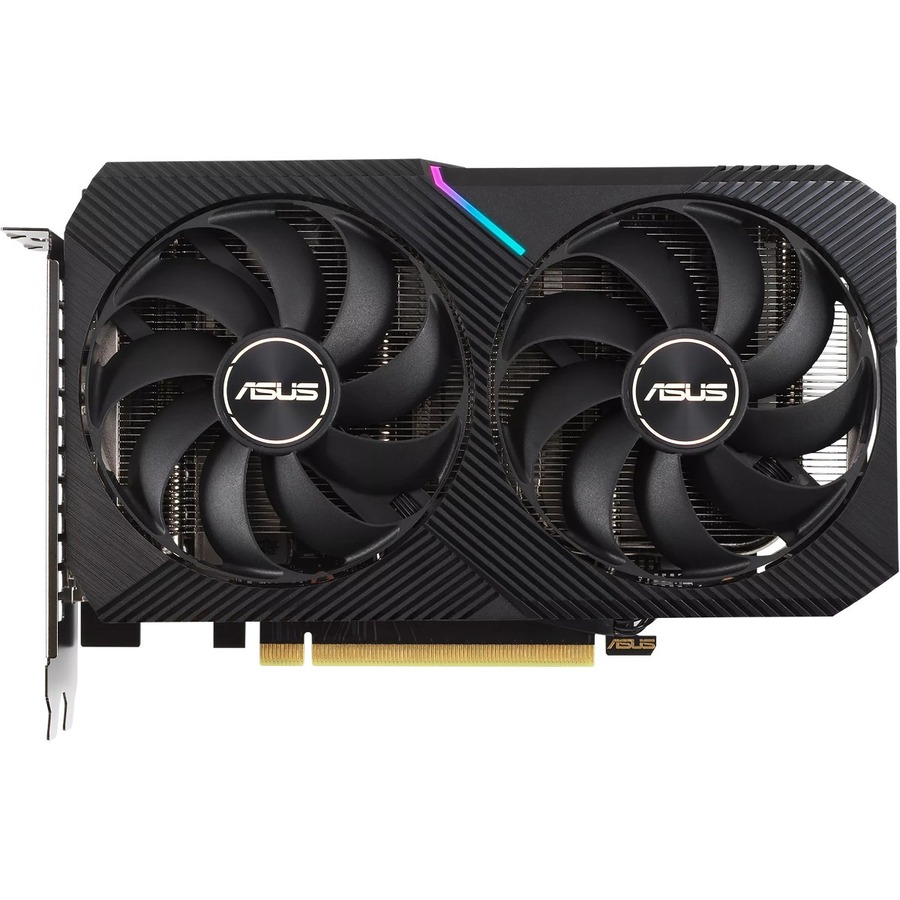

The compact ASUS DUAL GeForce RTX™ 3060 Ti V2 MINI 8GB GDDR6 with LHR features two powerful Axial-tech fans for small chassis including the Intel® NUC 9 Kits.

  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
  • This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
  • stainless steel bracket is harder and more resistant to corrosion.
  • 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • 0dB Technology lets you enjoy light gaming in relative silence.

2x Fans. 2x Fun.

The Dual GeForce RTX™ 3060 Ti MINI Graphics Card is designed for compact gaming builds and the Intel® NUC 9. Features like the Axial-tech fan design, a custom 2-slot thermal solution, and Auto-Extreme Technology make the MINI an obvious choice for those who want an SFF system capable of rivalling the graphics performance of full-sized builds and burly desktops.


Axial-tech Fan Design | Better, faster, stronger

Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.

0dB Technology | Quiet intelligence

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

2-slot Design | Sink your heat into this

The Dual MINI features a cooling solution that fits into a 2-slot design less than 20cm in length, making it compatible with small chassis and the Intel® NUC 9 Kits without sacrificing thermal performance. A redesigned shroud, heatsink, and heatpipe layout allows two Axial-tech fans to take advantage of the mesh side panel of the Intel® NUC 9 Extreme Kit and Intel® NUC 9 Pro Kit, while maintaining space for cable management and airflow to the CPU cooler.


Auto-Extreme Technology | Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate | That’s so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.


Limited Warranty36 Month
Power Description
Power Supply Wattage750 W
Power Connector1x 8-pin
Standard Memory8 GB
Memory TechnologyGDDR6
Bus Width256 bit
Package Contents
  • DUAL GeForce RTX 3060 Ti V2 MINI Graphic Card
  • 1 x Collection Card
  • 1 x Speedsetup Manual
Platform SupportedPC
Environmentally FriendlyYes
Environmental CertificationRoHS
Host InterfacePCI Express 4.0
Number of DisplayPort Outputs3
Number of HDMI Outputs1
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset ModelRTX 3060 TI
Chipset LineGeForce
Chipset SeriesRTX
GPU Boost Clock1.70 GHz
Physical Characteristics
Form FactorPlug-in Card
Length199.9 mm
Cooler TypeFan Cooler
Height38 mm
Width122.9 mm
Slot Space RequiredDual
Technical Information
API SupportedDirectX 12 Ultimate
OpenGL 4.6
Multi-GPU TechnologyNo
Number of Monitors Supported4
Maximum Digital Display Resolution7680 x 4320
CUDA Cores4864
General Information
Product TypeGraphic Card
Manufacturer Part NumberDUAL-RTX3060TI-8G-MINI-V2
Manufacturer Website Address
ManufacturerASUS Computer International
Product ModelDUAL-RTX3060TI-8G-MINI-V2
Product NameDUAL GeForce RTX 3060 Ti V2 MINI Graphic Card
Product LineDual
Brand NameAsus
