Asus GeForce RTX 3060 TUF Gaming V2 OC 12GB Graphics Card LHR Version


In stock


  • Brand Name: TUF
  • Product Type: Graphic Card
  • Who It’s For: Its for pc and gaming pc holders
  • Warranty: 36 Month
  • Power Supply: 750 W
  • Power Connector: 1x 8-pin
  • Memory: 12 GB GDDR6
  • Bus Width: 192 bit
  • Platform Supported: PC
  • Ports: HDMI, DisplayPort
  • Host Interface: PCI Express 4.0
  • Chipset: NVIDIA GeForce RTX 3060
  • GPU Boost Clock: 1.88 GHz
  • Form Factor: Plug-in Card
  • Length: 300 mm
  • Cooler Type: Fan Cooler
  • Height: 54.1 mm
  • Width: 143 mm
  • Maximum Digital Display Resolution: 7680 x 4320
  • Product Model: TUF-RTX3060-O12G-V2-GAMING


In stock

Select Additional Warranty Options

Not selected
Purchase this product without any warranty options.

12 Months
100% Australian Manufacturer’s extended warranty
+ $99.99

24 Months
100% Australian Manufacturer’s extended warranty
+ $149.99

36 Months
100% Australian Manufacturer’s extended warranty
+ $199.99

TUF NVIDIA GeForce RTX 3060 Graphic Card – 12 GB GDDR6 – 1.88 GHz Boost Clock – 192 bit Bus Width – PCI Express 4.0 – DisplayPort – HDMI

ASUS TUF Gaming GeForce RTX™ 3060 V2 OC Edition 12GB GDDR6 buffed-up design with chart-topping thermal performance.

  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
  • OC edition: Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)

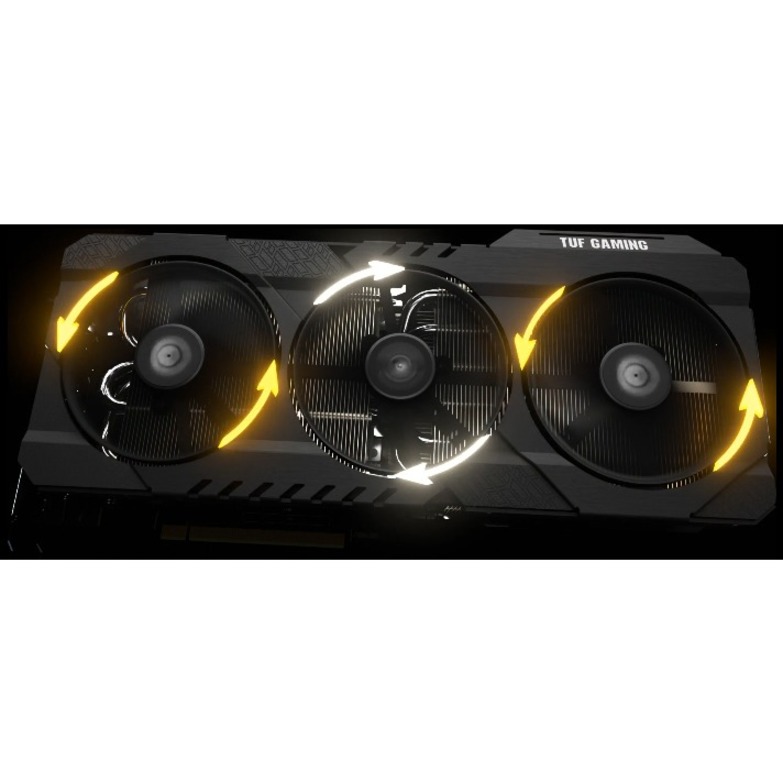

  • Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

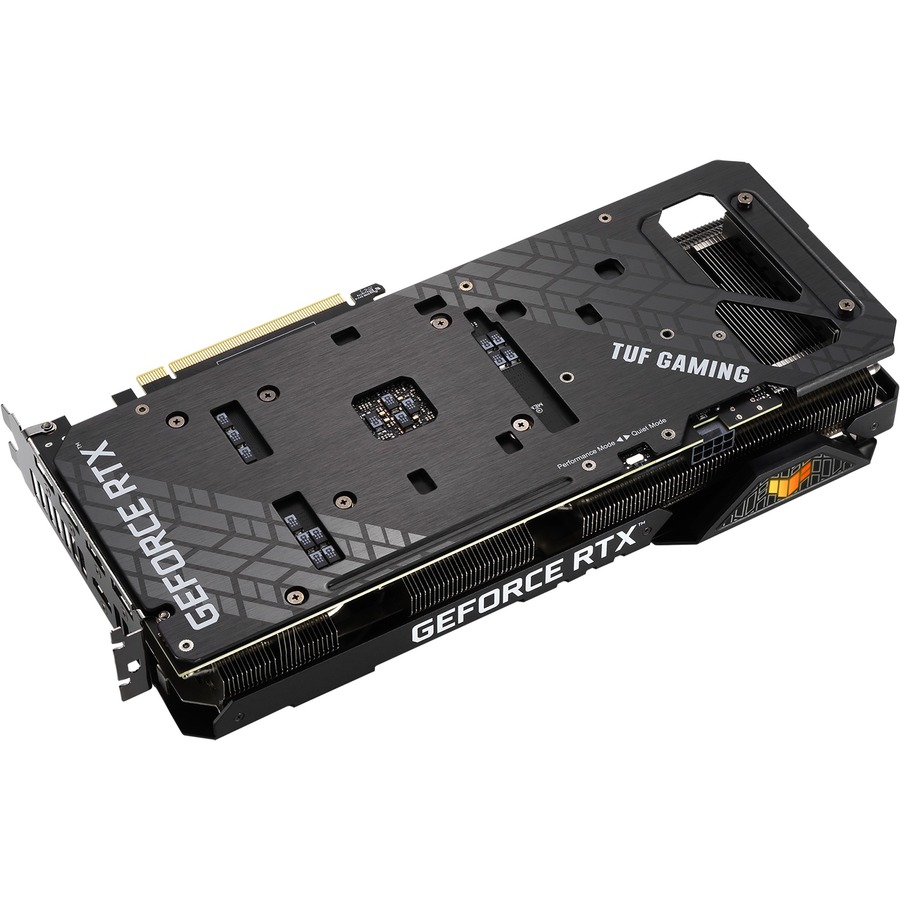

  • An all-aluminum shroud and metal backplate enhance durability.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.


The TUF GAMING GeForce RTX™ 3060 has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.

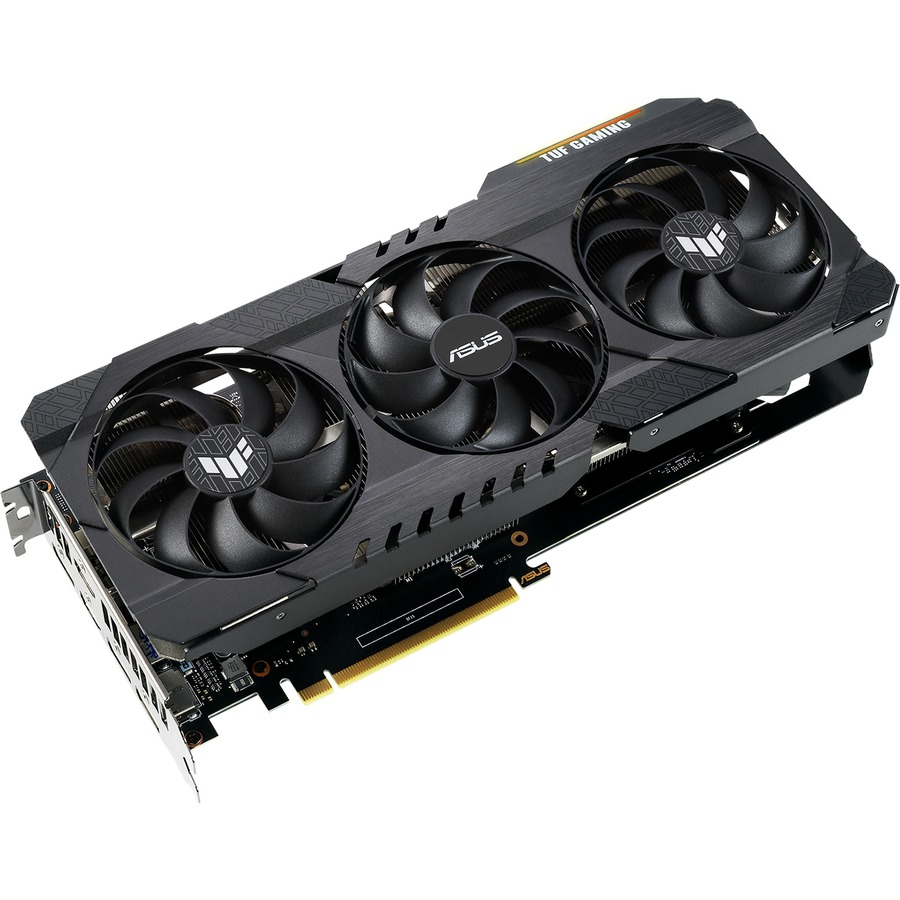

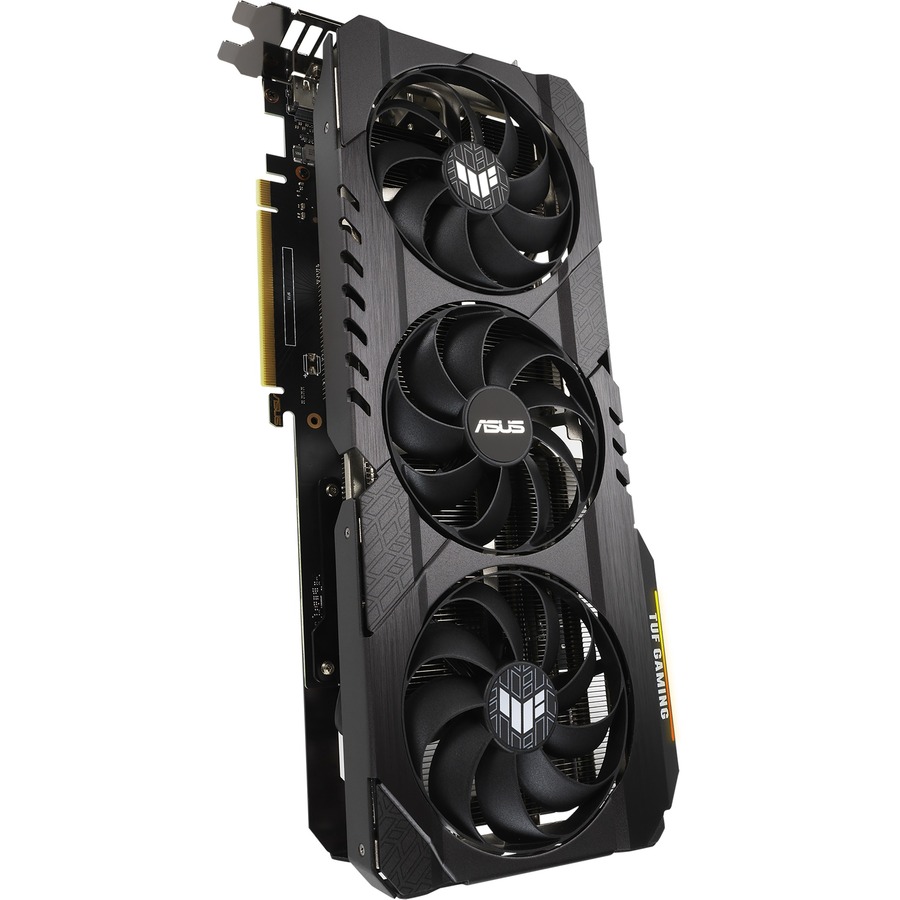

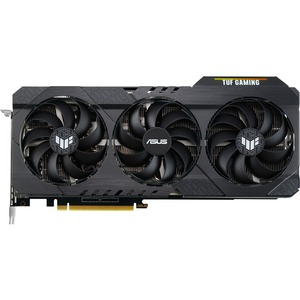

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

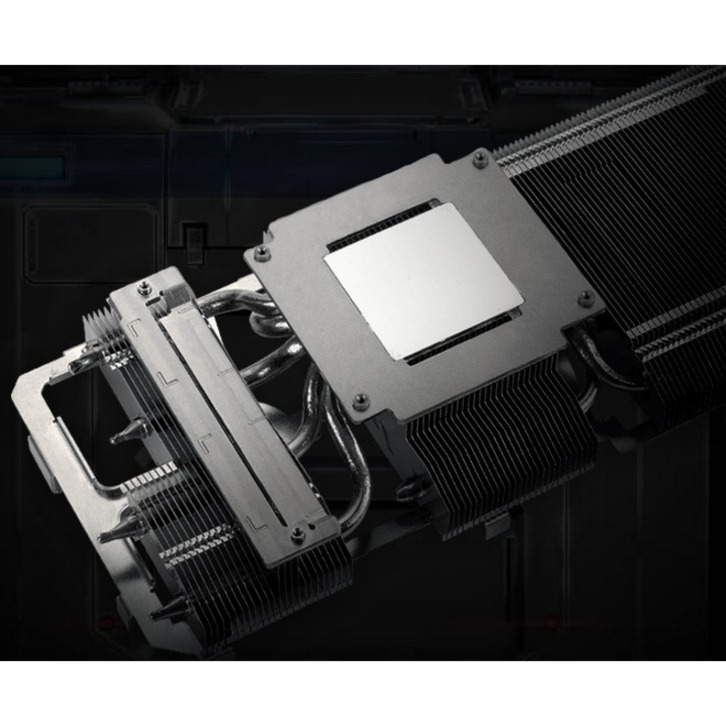

To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

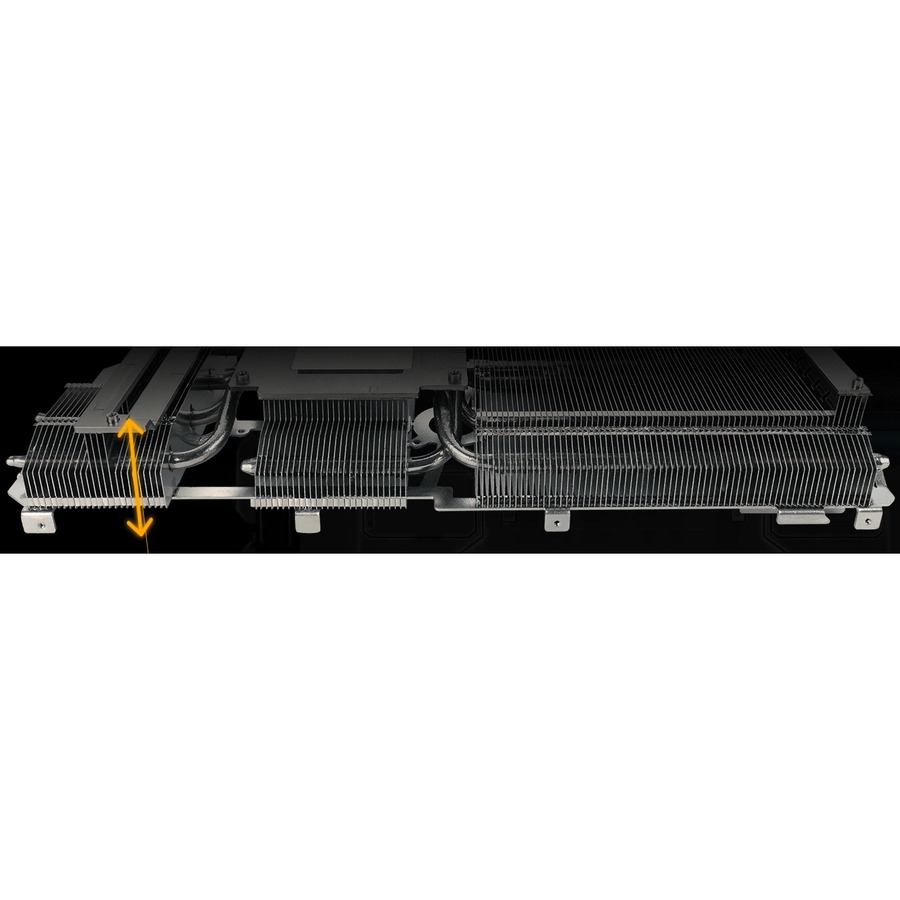

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint.

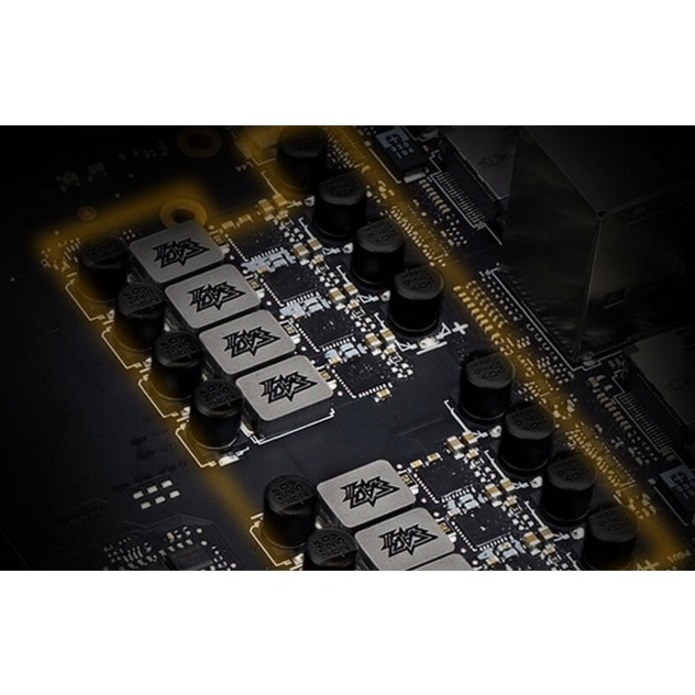

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.


An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

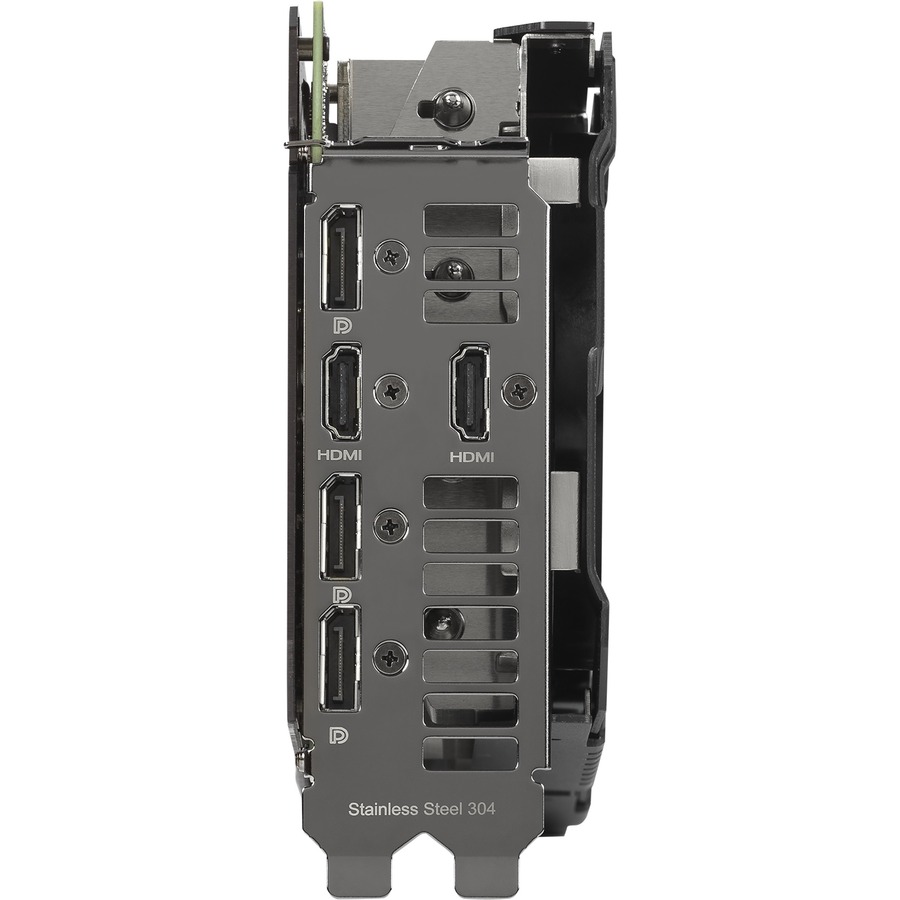

  • Stainless Steel I/O Bracket

  • Dual BIOS

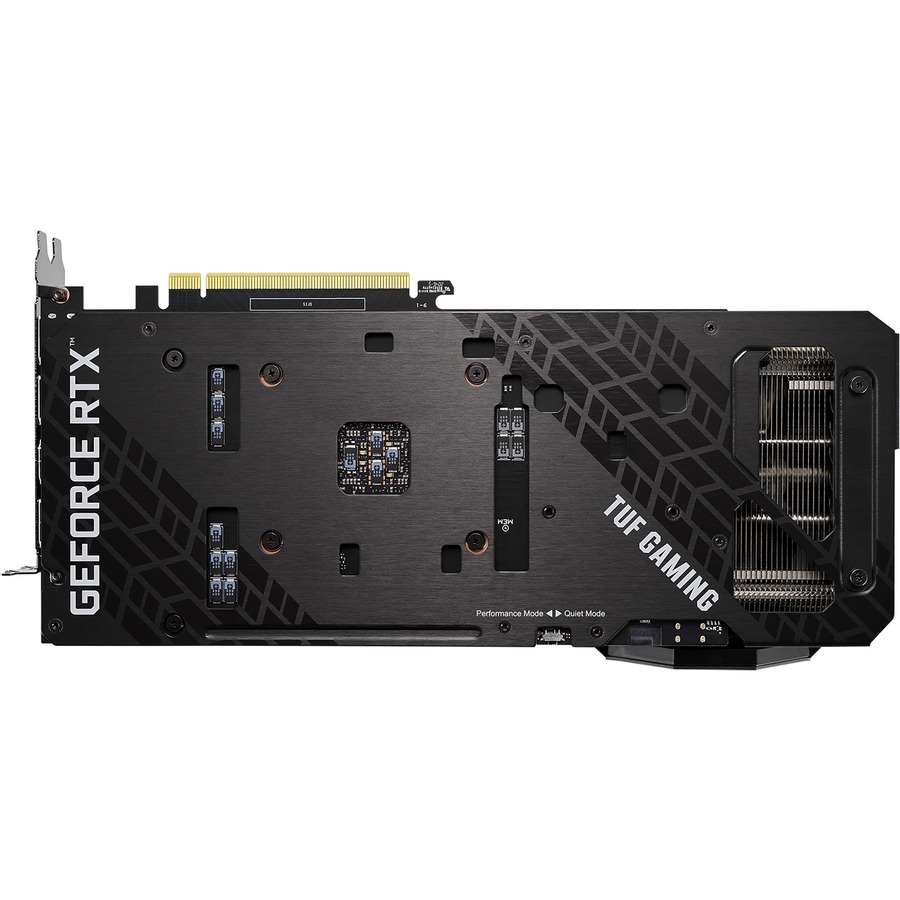

  • Vented Backplate


Limited Warranty36 Month
Power Description
Power Supply Wattage750 W
Power Connector1x 8-pin
Standard Memory12 GB
Memory TechnologyGDDR6
Bus Width192 bit
Package Contents
  • Gaming GeForce RTX 3060 V2 OC Edition Graphic Card
  • 1 x TUF Certificate Of Reliability
  • 1 x Collection Card
  • 1 x Speedsetup Manual
Platform SupportedPC
Environmentally FriendlyYes
Environmental CertificationRoHS
Host InterfacePCI Express 4.0
Number of DisplayPort Outputs3
Number of HDMI Outputs2
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset ModelRTX 3060
Chipset LineGeForce
Chipset SeriesRTX
GPU Boost Clock1.88 GHz
Physical Characteristics
Form FactorPlug-in Card
Length300 mm
Cooler TypeFan Cooler
Height54.1 mm
Width143 mm
Slot Space RequiredTriple
Technical Information
API SupportedDirectX 12 Ultimate
OpenGL 4.6
Multi-GPU TechnologyNo
Number of Monitors Supported4
Maximum Digital Display Resolution7680 x 4320
CUDA Cores3584
General Information
Product TypeGraphic Card
Manufacturer Part NumberTUF-RTX3060-O12G-V2-GAMING
Manufacturer Website Address
ManufacturerASUS Computer International
Product ModelTUF-RTX3060-O12G-V2-GAMING
Product NameGaming GeForce RTX 3060 V2 OC Edition Graphic Card
Brand NameTUF
SKU: TUF-RTX3060-O12G-V2-GAMING Category:
Weight1.6600 kg
